laser printer deflector

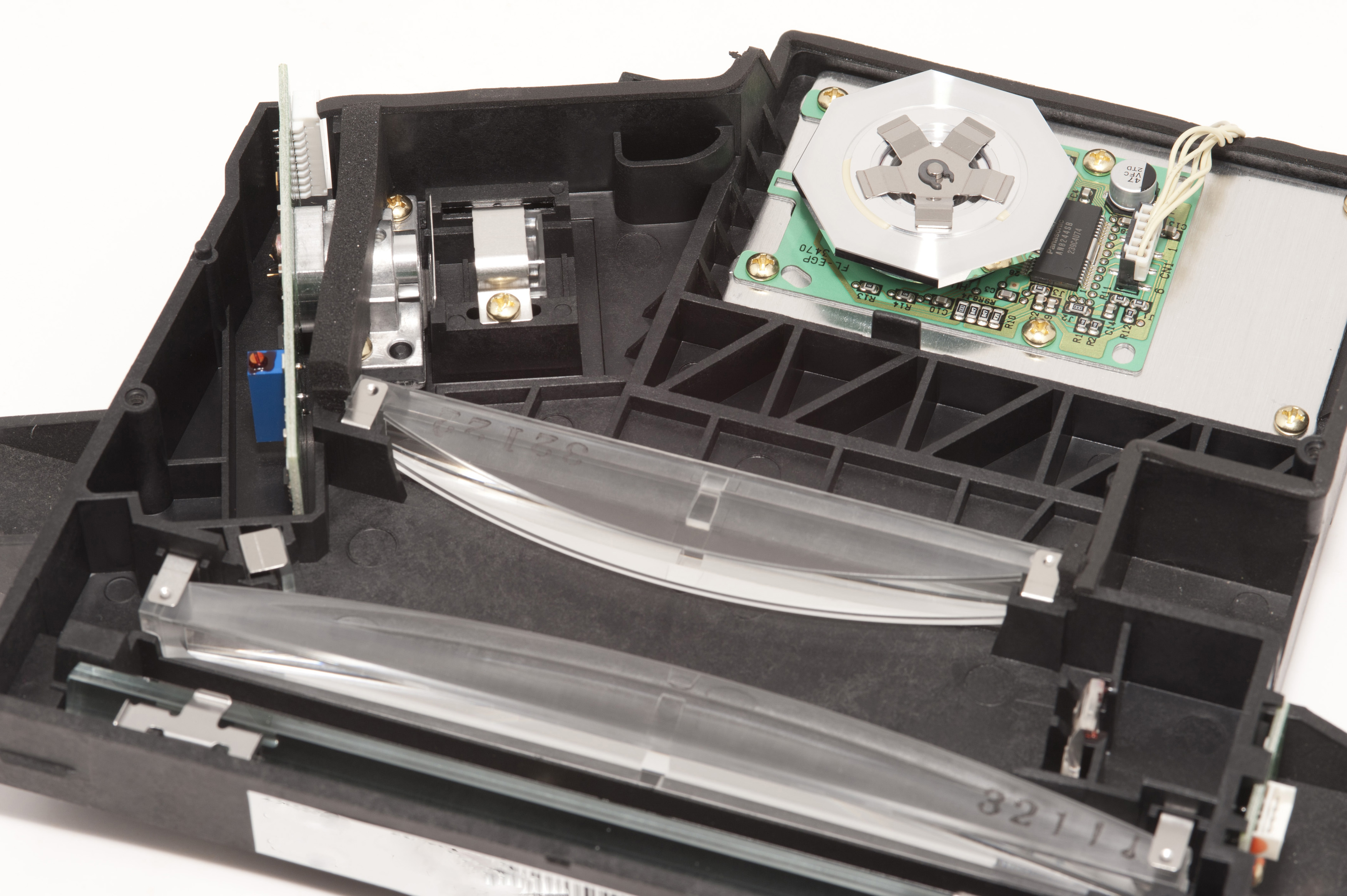

interor of a laser printer; the laser at the upper lens if focuesd trhough a mirror and them reflected from a spinning octagonal mirro upper centre; it is then reflected through a wide lens at the bottom of the picture onto a static charged drum

Image 13 of 31

Image Description

interor of a laser printer; the laser at the upper lens if focuesd trhough a mirror and them reflected from a spinning octagonal mirro upper centre; it is then reflected through a wide lens at the bottom of the picture onto a static charged drum

Keywords: laser printer mirror spinning mirror rotation mirror scanner scanning lens deflection scan beam focus optical electro optical control assembly components system
